Identification help: Is this RCBO Type A or Type AC?


Electricity, Tariffs, Monitoring, Electrics & Providers
Last Post by Transparent 7 months ago
4 Posts
4 Users
3 Reactions
1,124 Views
RSS
Mars
 Mars
(@editor)
Illustrious Member Admin
Joined: 6 years ago
Posts: 4961
Topic starter 24/03/2026 1:51 pm   [#2905]

I've formally started my journey into learning more about domestic electrics and I'm currently looking at our consumer unit and garage DB to see if our existing protection is Type A or Type AC. I know Type A is the modern standard for anything with electronics/inverters, but I’m struggling to be 100% sure based on the markings.

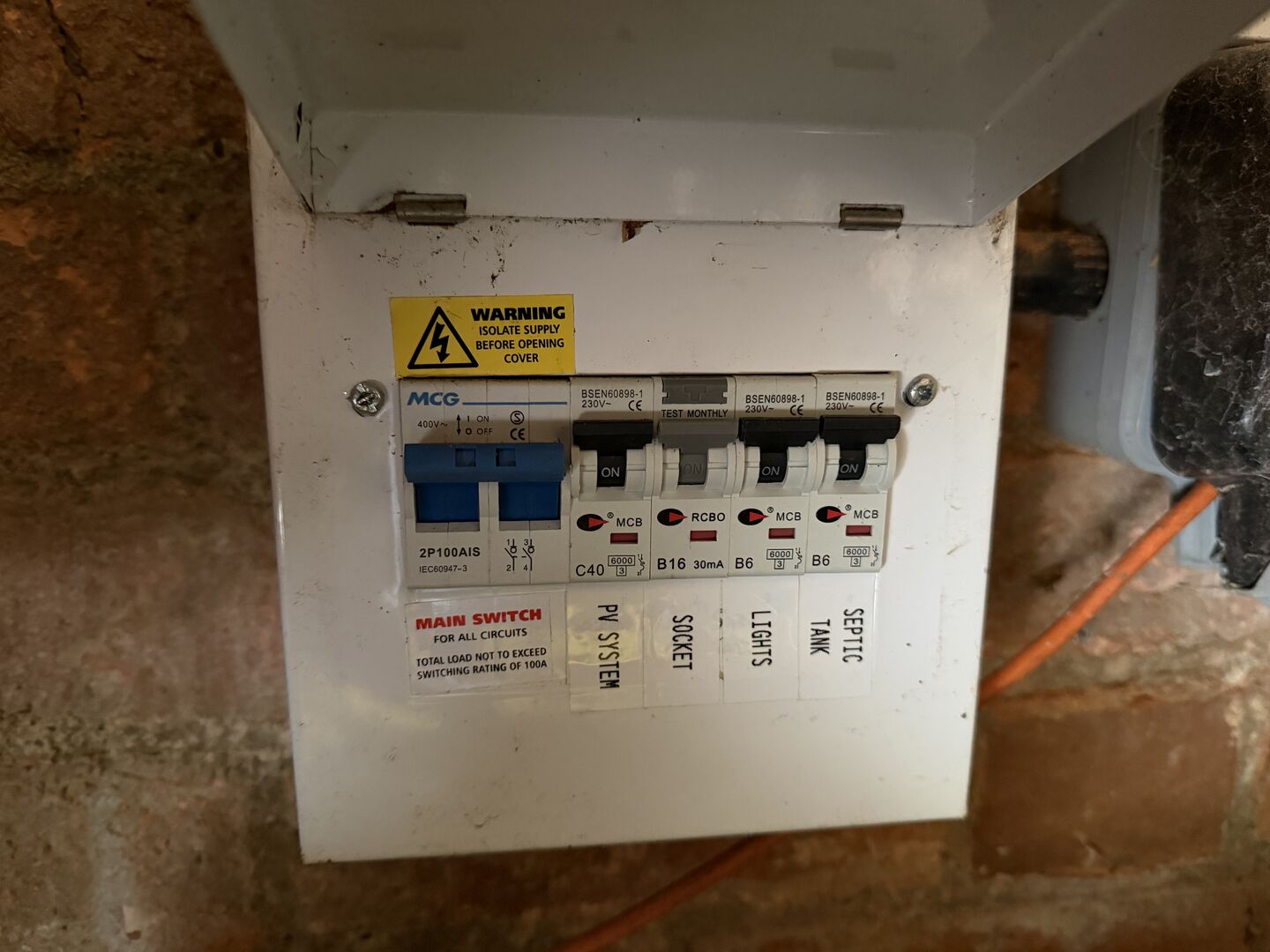

Looking at the RCBO in the image below labelled "Socket", can anyone confirm from the markings on this MCG RCBO if it is a Type A?

RCBOs in garage




🔥 Britain’s Heat Pump Shitshow
How Installing a Heating System Became a National Nervous Breakdown
Free UK shipping.
📗 Heat Pumps Explained
A Jargon-Free Guide for Homeowners
Rewritten and updated for 2027
📘 From Zero to Heat Pump Hero
🛠️ Bodge Buster
New to heat pumps?
Take the Heat Pump Fundamentals course and use INTRO50 at checkout for 50% off.



👍
1
Quote
JamesPa
 JamesPa
(@jamespa)
Illustrious Member Moderator
Joined: 4 years ago
Posts: 5607
24/03/2026 4:42 pm

Posted by: @editor
↑

I've formally started my journey into learning more about domestic electrics and I'm currently looking at our consumer unit and garage DB to see if our existing protection is Type A or Type AC. I know Type A is the modern standard for anything with electronics/inverters, but I’m struggling to be 100% sure based on the markings.

Have you decided to become a heat pump installer?  There appears to be a market!


4kW peak of solar PV since 2011; EV and a 1930s house which has been partially renovated to improve its efficiency. 7kW Vaillant heat pump.



😂
1
ReplyQuote
MK4
 MK4
(@mk4)
Estimable Member Member
Joined: 9 months ago
Posts: 81
26/03/2026 8:13 pm

@editor

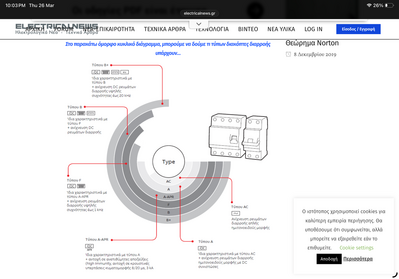

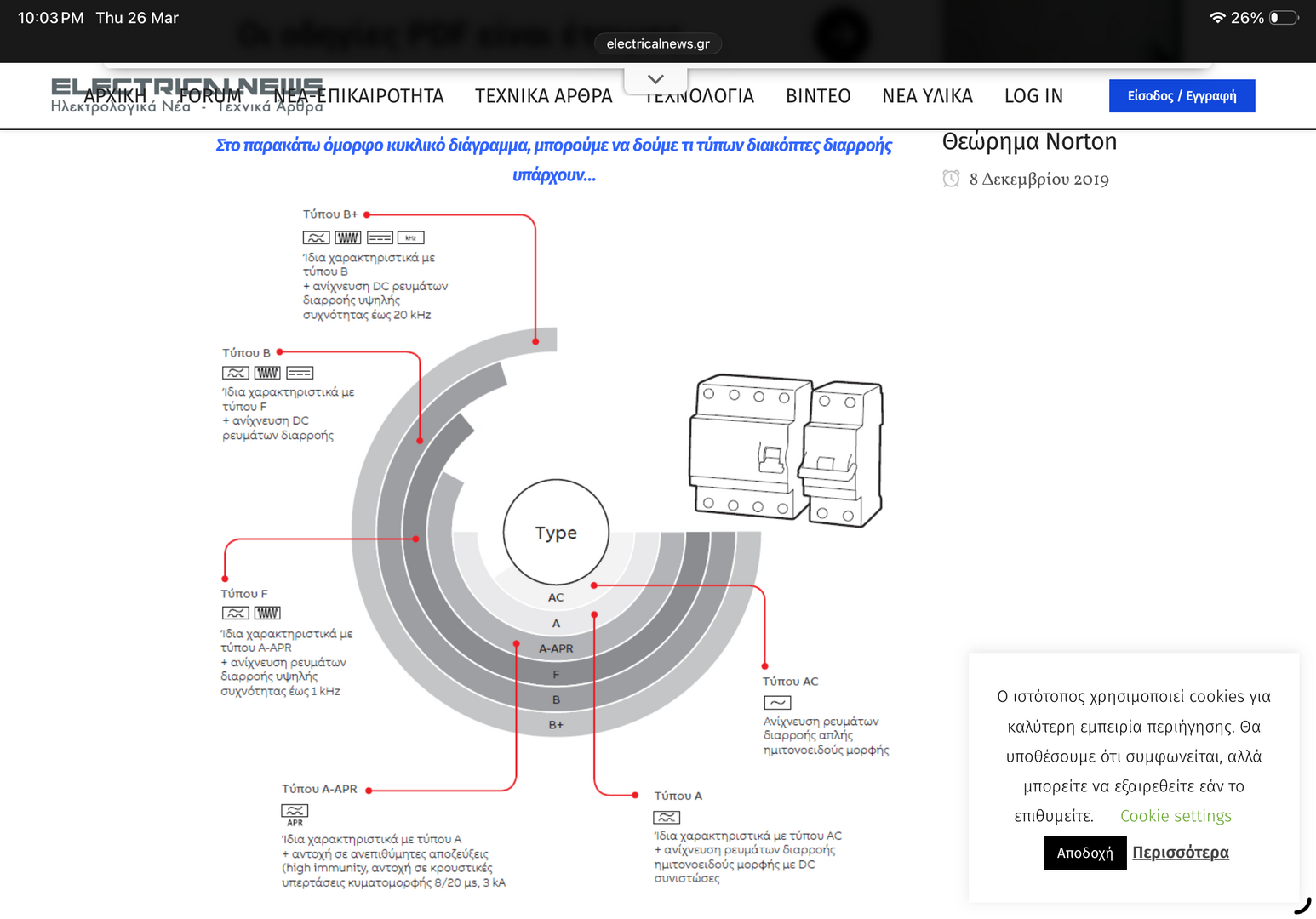

Could perhaps the following pictures be of any use to you?

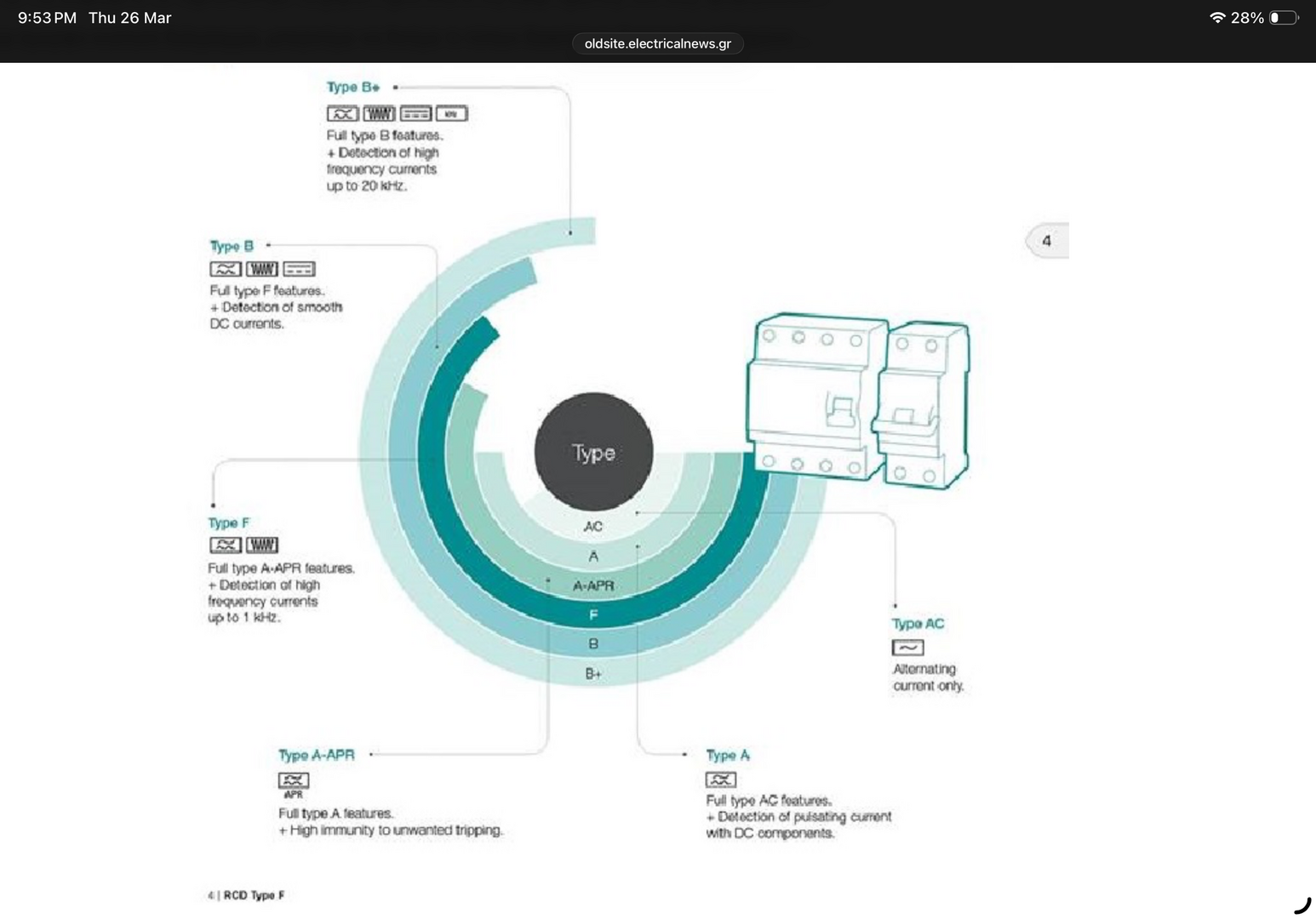

One is in english but blurry, the other is in greek but clearer (so that you can more easily discern the markings per type).

I was not able to see any of these markings in your photo, may be if you pull the switch down there are markings behind the lever….

IMG 3357
IMG 3356






ReplyQuote
Transparent
 Transparent
(@transparent)
Illustrious Member Moderator
Joined: 5 years ago
Posts: 3453
31/03/2026 10:11 am

Posted by: @editor
↑

Looking at the RCBO in the image below labelled "Socket", can anyone confirm from the markings on this MCG RCBO if it is a Type A?

Apologies for arriving here late!

From what we can see of that RCBO, there is no indication of its Type.

The 'B' in 'B16' refers to the curve which defines how fast it responds to over-current faults.
Beware of Screwfix who often describe trips incorrectly!

It's possible that there is writing we can't see hidden behind the toggle lever, beneath the words "Test Monthly".

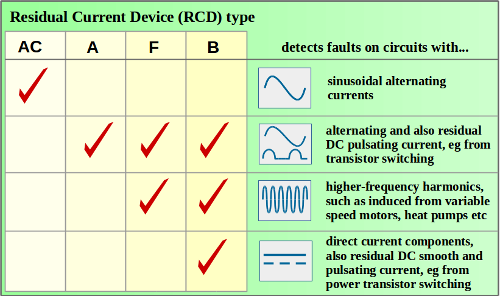

RCD type



One of my gripes is that simply isn't sufficient room on the 18x47mm visible part of a single-module-wide trip to tell us all we need to know.

Even if it were labelled with the relevant symbol for its Type, we'd still need to remove the front cover to see if it's uni- or bi-directional.



Could you take off the CU cover and post another photo here please?


This post was modified 7 months ago 3 times by Transparent

Save energy... recycle electrons!



🙏
1
ReplyQuote
