Topic starter 09/09/2021 8:56 am   [#108]

Hello everyone.

We've been looking to install an ASHP, but, from looking at all the different companies, all the ASHP seems to be in 'landscape' rather than 'portrait' orientation - meaning that they are wider than they are high, and takes up more space on the ground.

Does anyone know if anyone does any ASHP where the pump is stacked, with the fan underneath/above the system, to make a smaller footprint at all?

We're pretty low on space for where we can actually install the unit in the back yard, and we're pretty keen on getting one (already ok'ed with planning), so we're just trying to figure out which best units might help us here.

Many thanks!






👍
2
Quote
 batalto
(@batalto)
Noble Member Member
Joined: 6 years ago
Posts: 1092
09/09/2021 9:29 am

Maybe the RED ones might work for you? - http://www.red-limited.com/


12kW Midea ASHP - 8.4kw solar - 29kWh batteries
262m2 house in Hampshire
Current weather compensation: 47@-2 and 31@17
My current performance can be found - HERE
Heat pump calculator spreadsheet - HERE



👍
4
ReplyQuote
Morgan
 Morgan
(@morgan)
Noble Member Member
Joined: 6 years ago
Posts: 704
09/09/2021 10:35 am
Posted by: @glanmenai

Hello everyone.

We've been looking to install an ASHP, but, from looking at all the different companies, all the ASHP seems to be in 'landscape' rather than 'portrait' orientation - meaning that they are wider than they are high, and takes up more space on the ground.

Does anyone know if anyone does any ASHP where the pump is stacked, with the fan underneath/above the system, to make a smaller footprint at all?

We're pretty low on space for where we can actually install the unit in the back yard, and we're pretty keen on getting one (already ok'ed with planning), so we're just trying to figure out which best units might help us here.

Many thanks!



@glanmenai

Like the one Mars @editor has?

5B3EC7DA 14DE 43A3 A127 F97A79D5341F

Retrofitted 11.2kw Mitsubishi Ecodan to new radiators commissioned November 2021.
14 x 500w Monocrystalline solar panels.

2 ESS Smile G3 10.1 batteries.
ESS Smile G3 5kw inverter.



👍
2
ReplyQuote
 witchcraft
(@witchcraft)
Estimable Member Contributor
Joined: 5 years ago
Posts: 91
09/09/2021 10:44 am

My 12kW Vaillant Aerotherm Plus is properly a portrait format machine too




👍
2
ReplyQuote
 GlanMenai
(@glanmenai)
Active Member Member
Joined: 5 years ago
Posts: 2
Topic starter 09/09/2021 11:11 am

Hello everyone!

This is amazing - thank you! I hadn't come across any of these in my search, so it's fantastic to see that there is indeed options. @witchcraft - you haven't got a photo of your Valiant have you? That was a brand of ASHP that I was looking into, and really liked their systems.




👍
4
ReplyQuote
 witchcraft
(@witchcraft)
Estimable Member Contributor
Joined: 5 years ago
Posts: 91
09/09/2021 11:17 am
a2b2935a 9afa 4f23 af62 da72bc112509

 Here you are






👍
2
ReplyQuote
Mars
 Mars
(@editor)
Illustrious Member Admin
Joined: 6 years ago
Posts: 4958
09/09/2021 5:24 pm

@batalto, we interviewed Graham Hendra today and he says that the RED ASHPs are arguably the best heat pumps on the market, but they come with a hefty price tag.


🔥 Britain’s Heat Pump Shitshow
How Installing a Heating System Became a National Nervous Breakdown
Free UK shipping.
📗 Heat Pumps Explained
A Jargon-Free Guide for Homeowners
Rewritten and updated for 2027
📘 From Zero to Heat Pump Hero
🛠️ Bodge Buster
New to heat pumps?
Take the Heat Pump Fundamentals course and use INTRO50 at checkout for 50% off.



ReplyQuote
Mars
 Mars
(@editor)
Illustrious Member Admin
Joined: 6 years ago
Posts: 4958
09/09/2021 5:27 pm

@glanmenai, it never even occurred to me that form factor of heat pumps could be an important factor in the decision making process, which makes perfect sense. Great question.


🔥 Britain’s Heat Pump Shitshow
How Installing a Heating System Became a National Nervous Breakdown
Free UK shipping.
📗 Heat Pumps Explained
A Jargon-Free Guide for Homeowners
Rewritten and updated for 2027
📘 From Zero to Heat Pump Hero
🛠️ Bodge Buster
New to heat pumps?
Take the Heat Pump Fundamentals course and use INTRO50 at checkout for 50% off.



👍
2
ReplyQuote
Graham Hendra
 Graham Hendra
(@grahamh-energy-donkey)
Estimable Member Member
Joined: 6 years ago
Posts: 114
10/09/2021 11:49 am

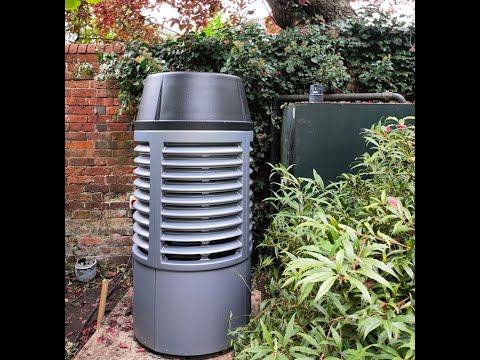

good points all, the older way of doing heat pumps was one fan above the other in the tombstone layout or portrait , but this year the trend is to go for short fat single fan units in the landscape layout. Everyone is doing it. Mitsubishi, Vaillant, Daikin, Midea etc and the rest will follow. RED (i love these units so much, i should i am Mr RED, I have one at home) is completely different, they look like a darlek or a compost bin but they are tall so if you want it under a window this might not help.




Heat pump builder, R and D engineer for Haier Europe and head Energy Donkey



👍
2
ReplyQuote
Morgan
 Morgan
(@morgan)
Noble Member Member
Joined: 6 years ago
Posts: 704
10/09/2021 1:45 pm

@grahamh Googled RED.  The whole system looks good.


Retrofitted 11.2kw Mitsubishi Ecodan to new radiators commissioned November 2021.
14 x 500w Monocrystalline solar panels.

2 ESS Smile G3 10.1 batteries.
ESS Smile G3 5kw inverter.



👍
2
ReplyQuote
Mars
 Mars
(@editor)
Illustrious Member Admin
Joined: 6 years ago
Posts: 4958
10/09/2021 2:05 pm

@Morgan, the RED systems look really great. I actually like their styling a lot.

@grahamh, you mentioned that these heat pumps are pricier than others on the market. What kind of price difference are we talking about?


🔥 Britain’s Heat Pump Shitshow
How Installing a Heating System Became a National Nervous Breakdown
Free UK shipping.
📗 Heat Pumps Explained
A Jargon-Free Guide for Homeowners
Rewritten and updated for 2027
📘 From Zero to Heat Pump Hero
🛠️ Bodge Buster
New to heat pumps?
Take the Heat Pump Fundamentals course and use INTRO50 at checkout for 50% off.



👍
2
ReplyQuote
Graham Hendra
 Graham Hendra
(@grahamh-energy-donkey)
Estimable Member Member
Joined: 6 years ago
Posts: 114
10/09/2021 2:45 pm

@morgan if you are struggling to sleep heres a video of a couple of geeks enthusing about it.

enjoy


Heat pump builder, R and D engineer for Haier Europe and head Energy Donkey



👍
2
