[Sticky] Solar Power Output – Let’s Compare Generation Figures

388 Posts
39 Users
157 Reactions
84.4 K Views
(@tim441)
Honorable Member Contributor
Joined: 4 years ago
Posts: 463


Aircon is aka air to air heat pump so, as with air to water heat pumps, they're highly efficient. Getting 3x kwh out for each kwh in. Ehether heating or cooling

So useful for aircon in summer  - especially if you have solar and/or batteries to fill at cheap overnight rates.

Aircon is also useful as heating in the shoulder months when your ashp may not really be needed. Even better with solar/batteries.


Listed Grade 2 building with large modern extension.
LG Therma V 16kw ASHP
Underfloor heating + Rads
8.7kw pv solar
3 x 8.2kw GivEnergy batteries
1 x GivEnergy Gen1 hybrid 5.0kw inverter
Manual changeover EPS
MG4 EV



ReplyQuote
Toodles
(@toodles)
Famed Member Contributor
Joined: 4 years ago
Posts: 2946


@papahuhu I think that accessibility issues go in waves, then poly tishuns get tired or change / money gets even tighter and things drop off again. Local buses are my mainstay but even those are threatened periodically and we have to fight again. Toodles.


Toodles, heats his home with cold draughts and cooks food with magnets.



ReplyQuote
MK4
 MK4
(@mk4)
Estimable Member Member
Joined: 8 months ago
Posts: 80

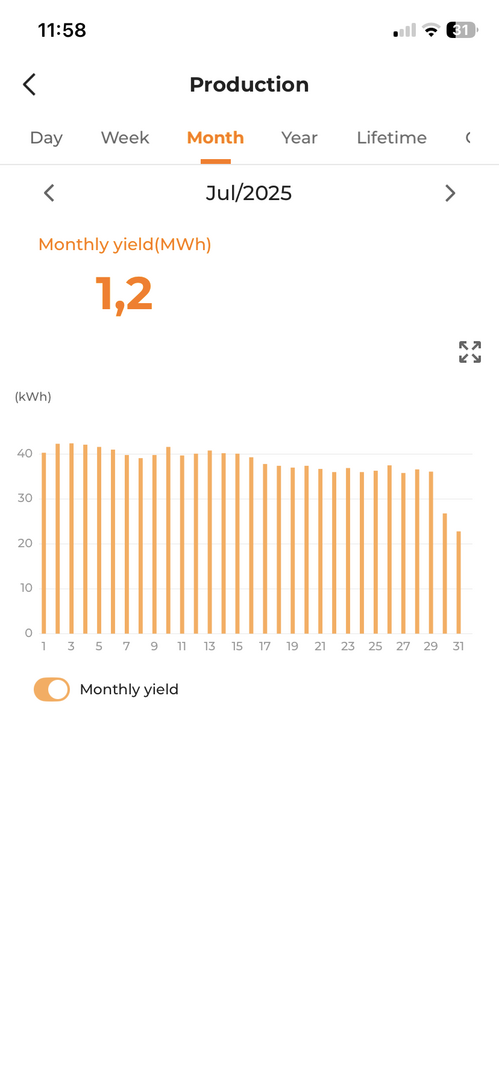

IMG 9300

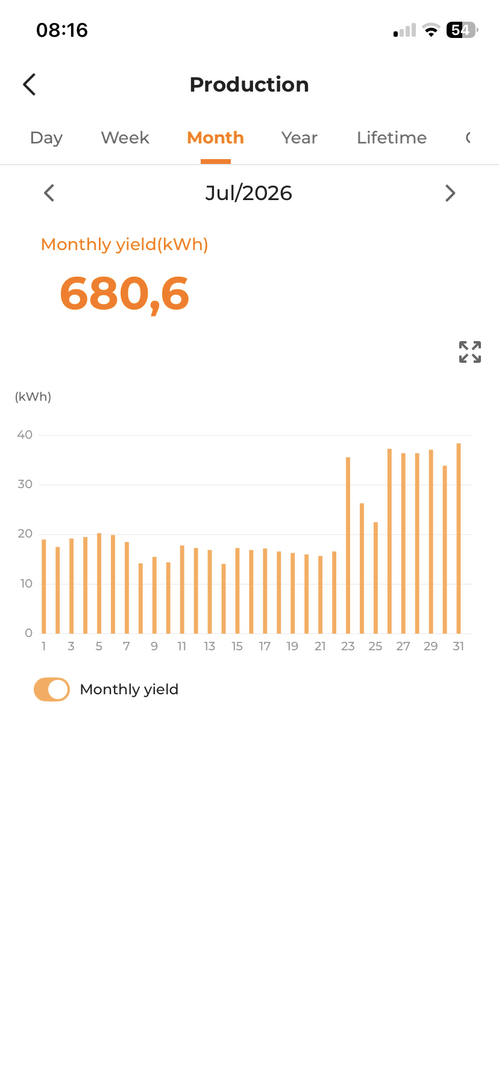

Production resumed to normal once the issue with the disconnected string was addressed



IMG 9298

This post was modified 1 month ago by MK4


ReplyQuote
Toodles
(@toodles)
Famed Member Contributor
Joined: 4 years ago
Posts: 2946

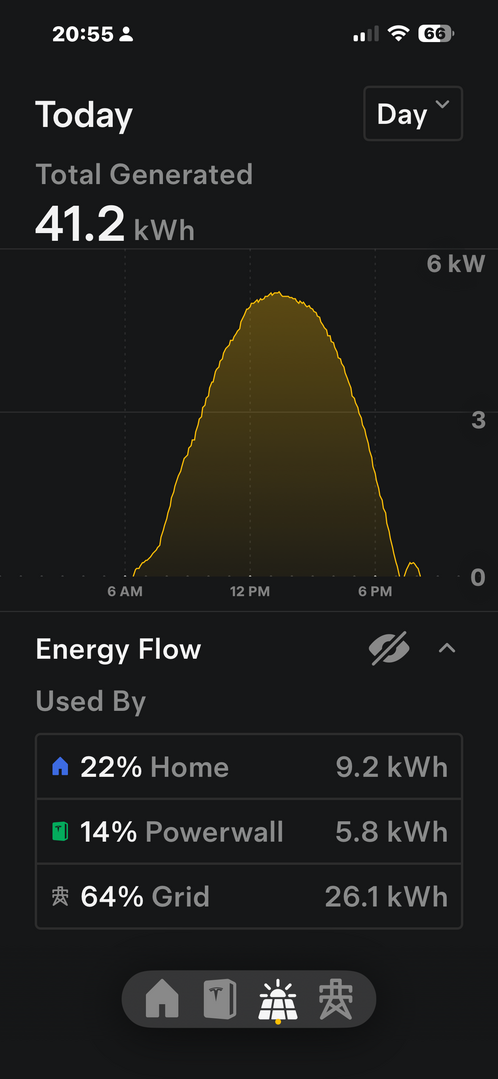

@mk4 Well, nearly a perfect day to eclipse all others!

Regards, Toodles.

IMG 7019




Toodles, heats his home with cold draughts and cooks food with magnets.



👍
1
ReplyQuote
(@papahuhu)
Reputable Member Member
Joined: 1 year ago
Posts: 396


@toodles Such elegant symmetry.

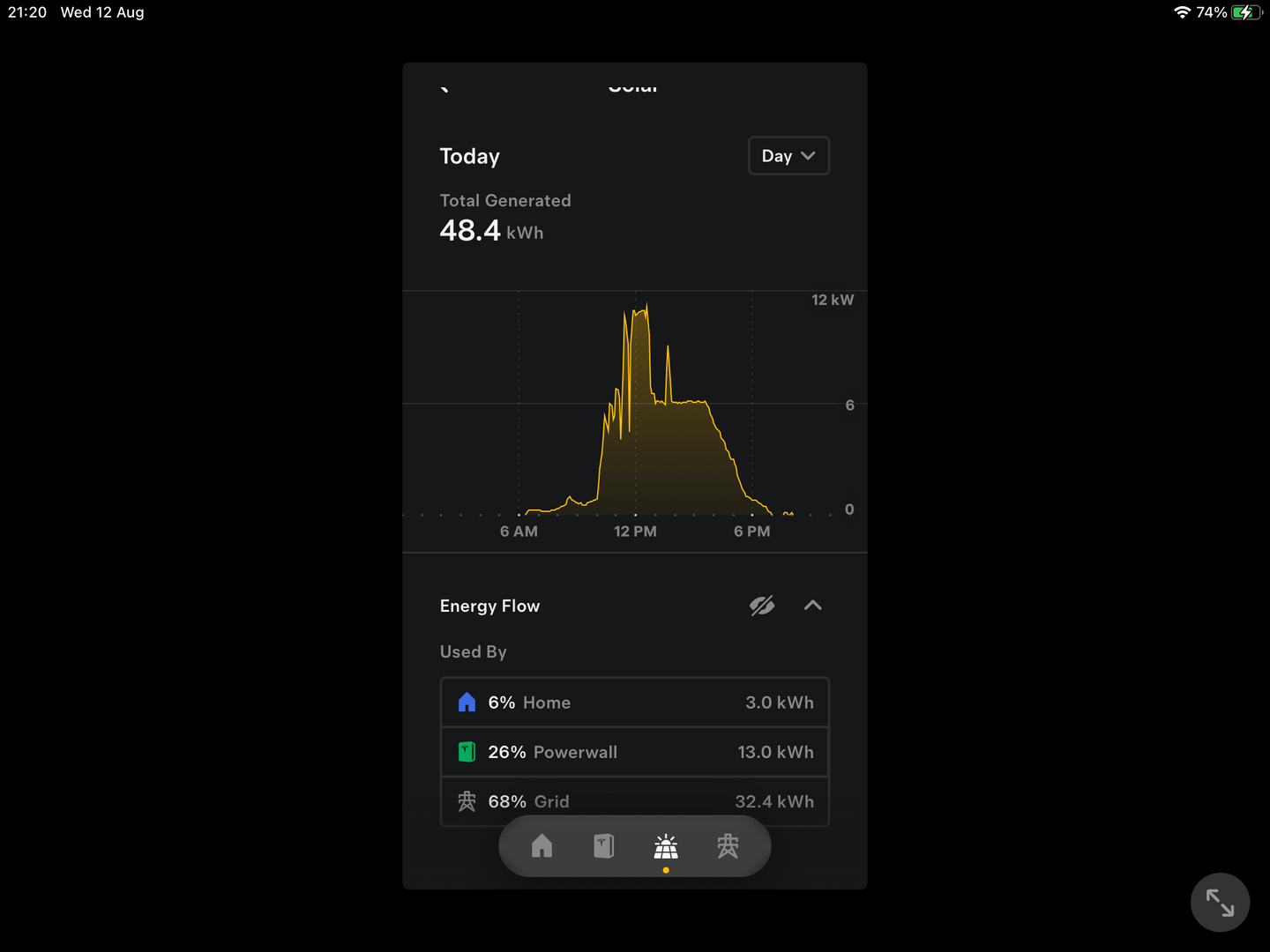

look at my lumpy bag of bolts, the polar opposite. Clouds and trees and G99 limits.

IMG 0308



ReplyQuote
Toodles
(@toodles)
Famed Member Contributor
Joined: 4 years ago
Posts: 2946

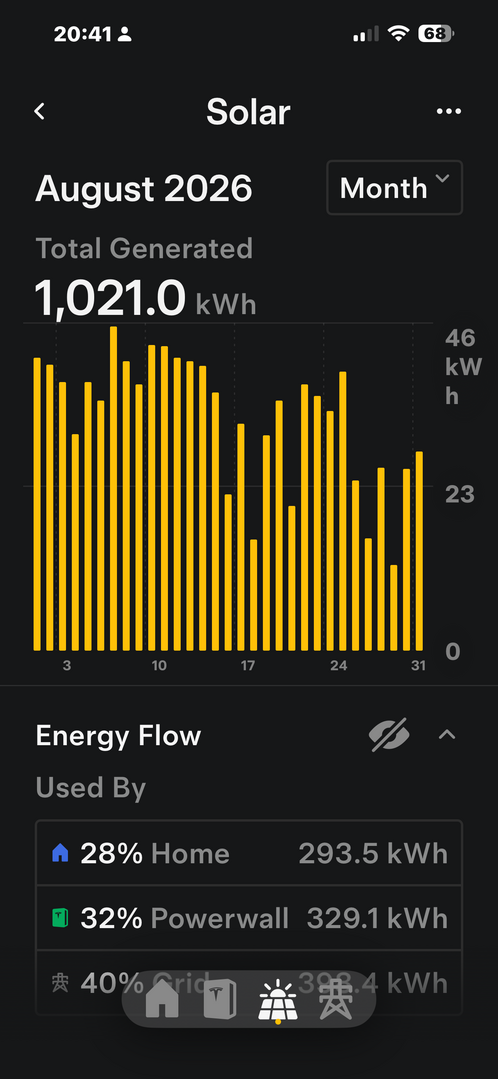

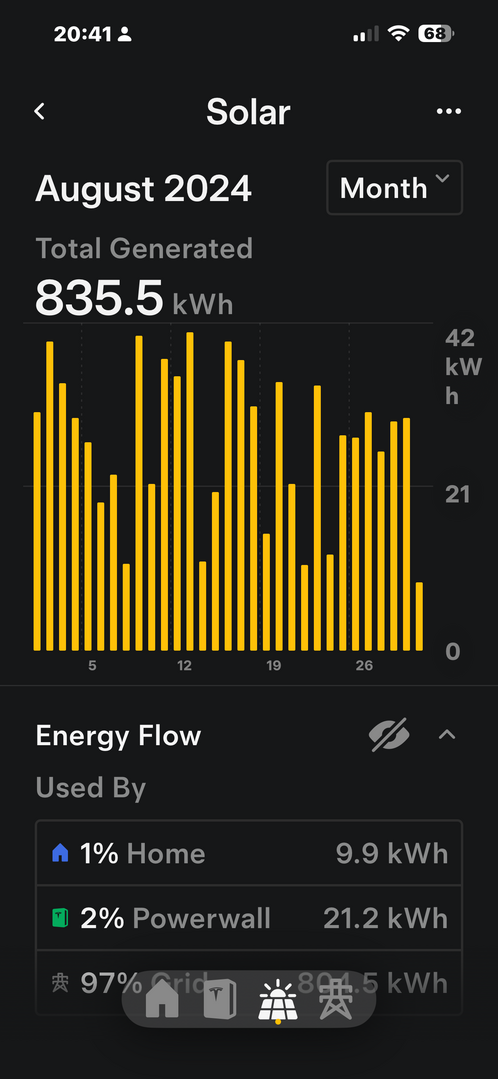

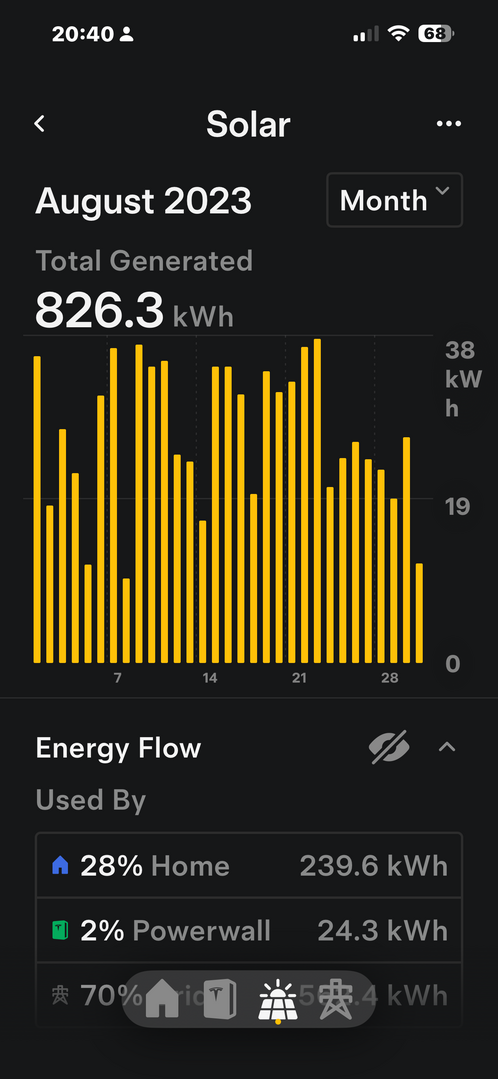

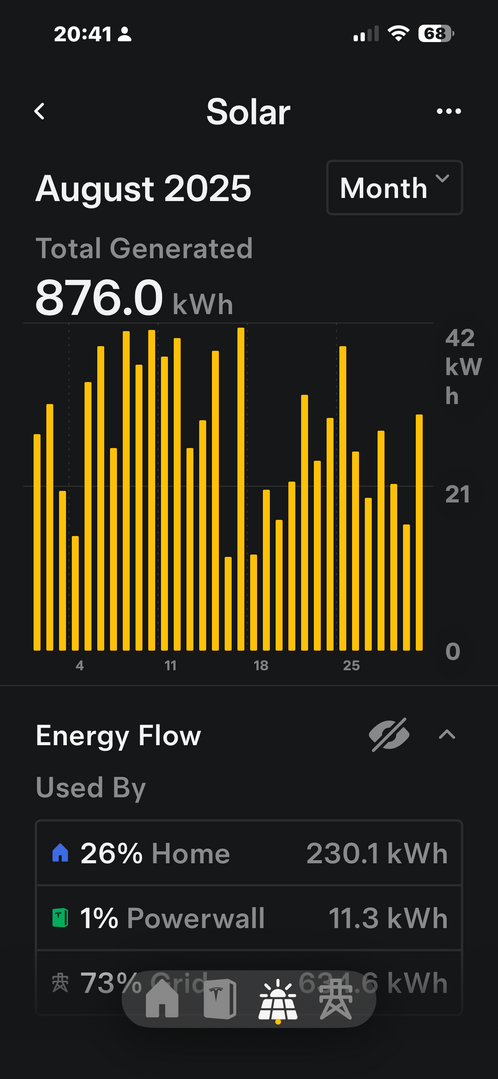

  1. @papahuhu And another ‘Mega’ month and, the best August in 4 years. (Aug. 2022 was not logged with my Tesla Kit as it was not commissioned until November 2022, though the system was running with just the Enphase system logging details that started sometime in that August).
IMG 7031
IMG 7030
IMG 7029
IMG 7028

Regards, Toodles.


Toodles, heats his home with cold draughts and cooks food with magnets.



ReplyQuote
(@papahuhu)
Reputable Member Member
Joined: 1 year ago
Posts: 396


@toodles

Very nice.

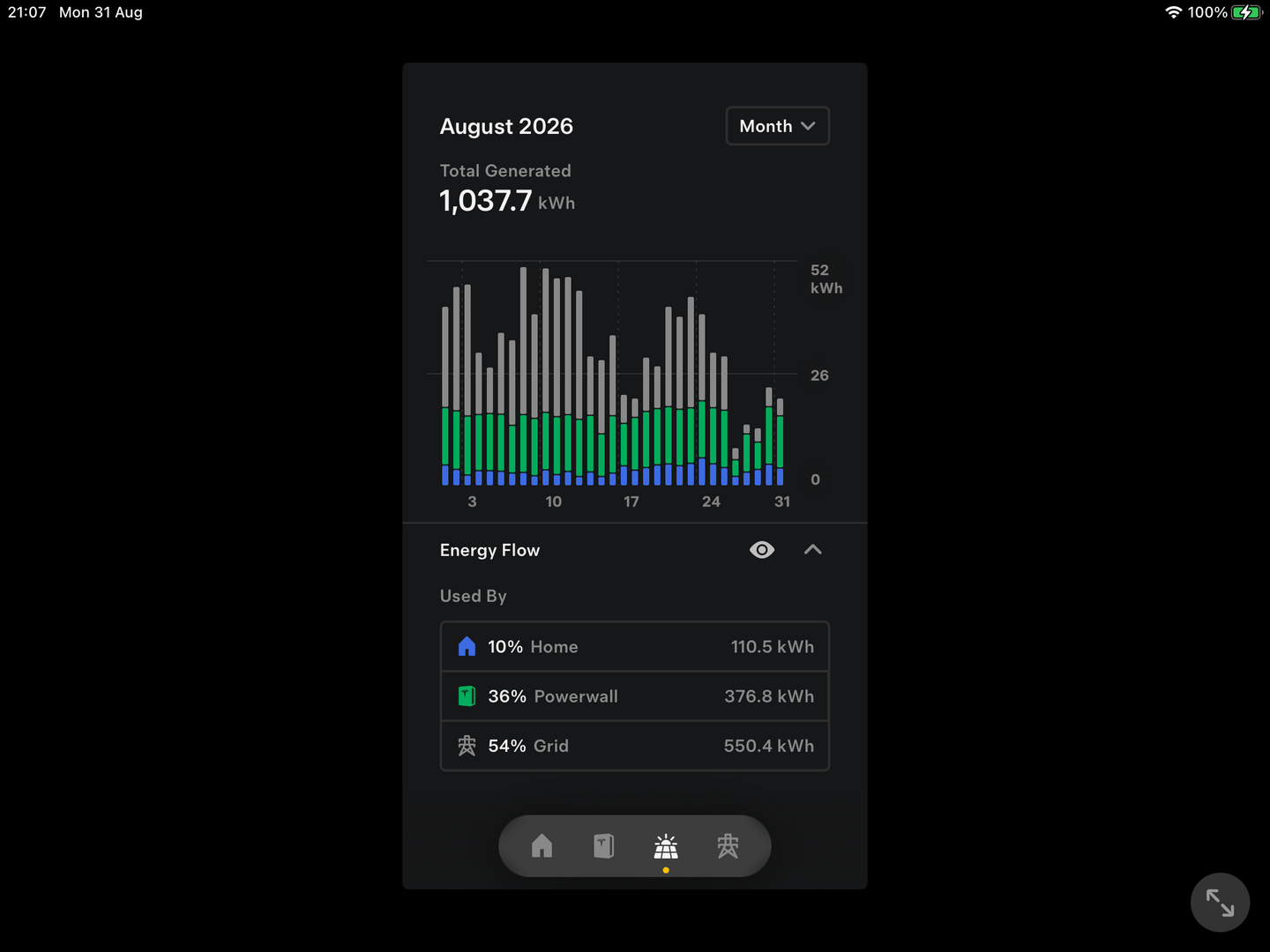

Ours was the opposite, about 10% down on mean for August.

Finally won my battle with the insulation remediation firm that implemented my retrofit and getting SWIP internal room in roof insulation fitted tomorrow, on the main roof. I requested a trustmark audit and they confirmed the necessary remediation, free of charge. Going to be interesting to see what it does to my heatloss, Im hopeful it will bring the flow temp down a few degrees. The other roof I had similarly done resulted in me turning one of the 3 rads completely off. I didn’t know if it were better to leave the others fully open loop and close one, or back all of them off via the TRVs.

IMG 0312



ReplyQuote
(@chandykris)
Reputable Member Member
Joined: 2 years ago
Posts: 207

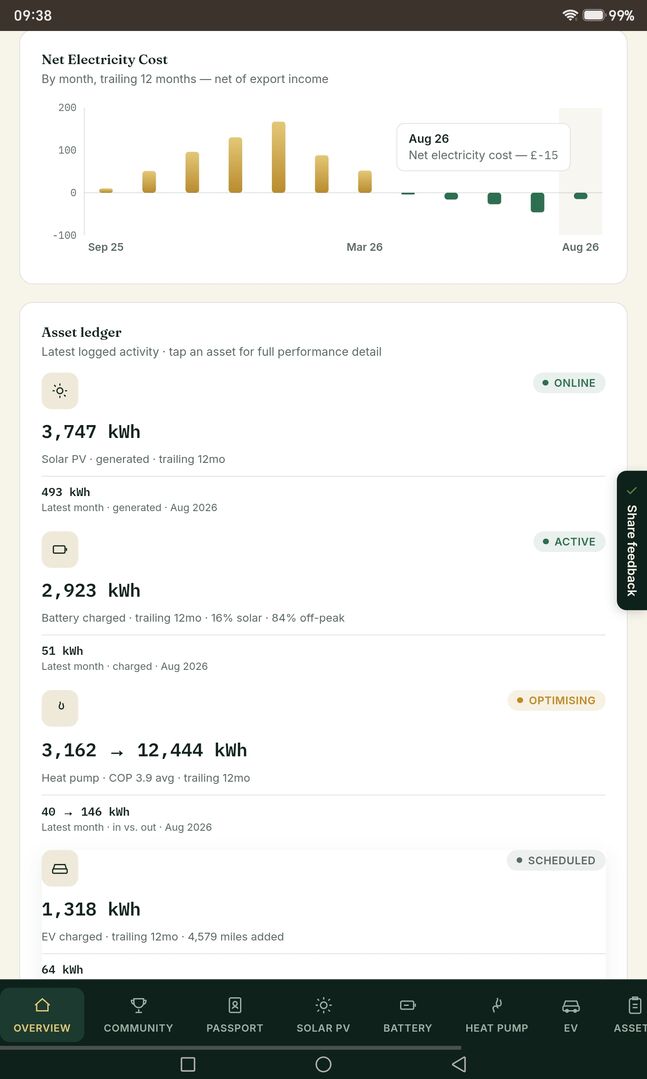

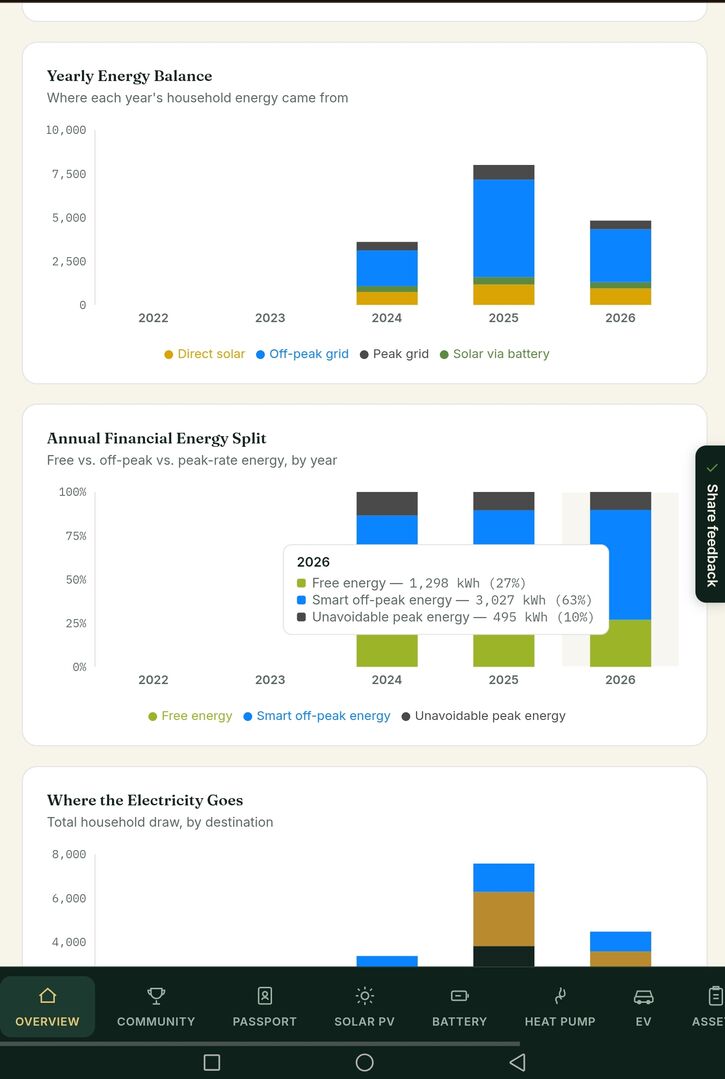

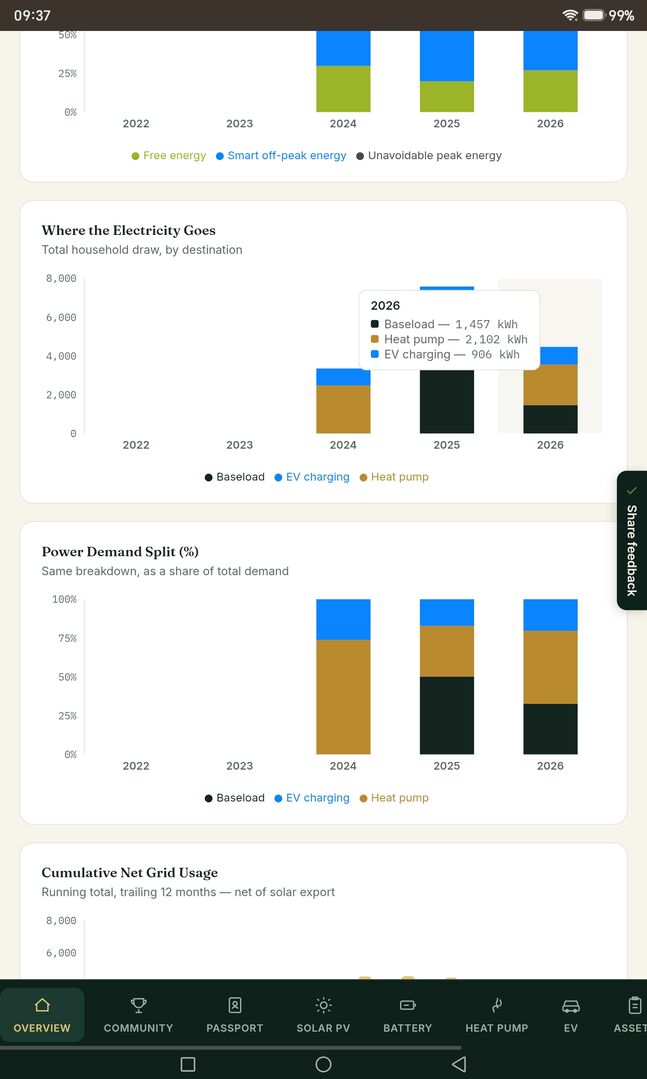

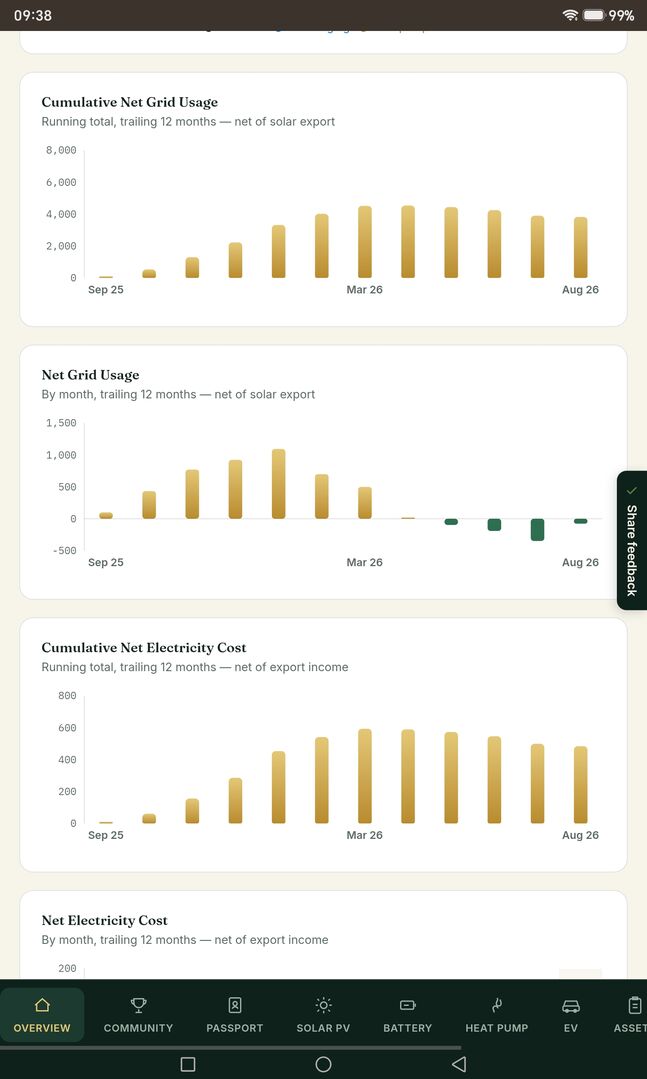

Ours was okish, still did better than last year August. We generated a little over 500 kWh. But, with the savings sessions, free weekend electricity, we ended up with a negative bill. Not complaining!!

overview4
overview3
overview2
overview1




16 * 435 watts PV
13 kWh Growatt battery
1 EV - Mercedes EQB
6 kW Aira Heat Pump
Bosch Induction Hob
Pod Point Solo 3 charger



ReplyQuote
(@tim441)
Honorable Member Contributor
Joined: 4 years ago
Posts: 463


Possibly useful to look at 3 months Jun, Jul, Aug and compare with previous years

2026: 2635kWh

2025: 2271

2024: 2239

2023: estimate 2140 including 15 day outage

2022: 2126




Listed Grade 2 building with large modern extension.
LG Therma V 16kw ASHP
Underfloor heating + Rads
8.7kw pv solar
3 x 8.2kw GivEnergy batteries
1 x GivEnergy Gen1 hybrid 5.0kw inverter
Manual changeover EPS
MG4 EV



👍
1
ReplyQuote
MK4
 MK4
(@mk4)
Estimable Member Member
Joined: 8 months ago
Posts: 80

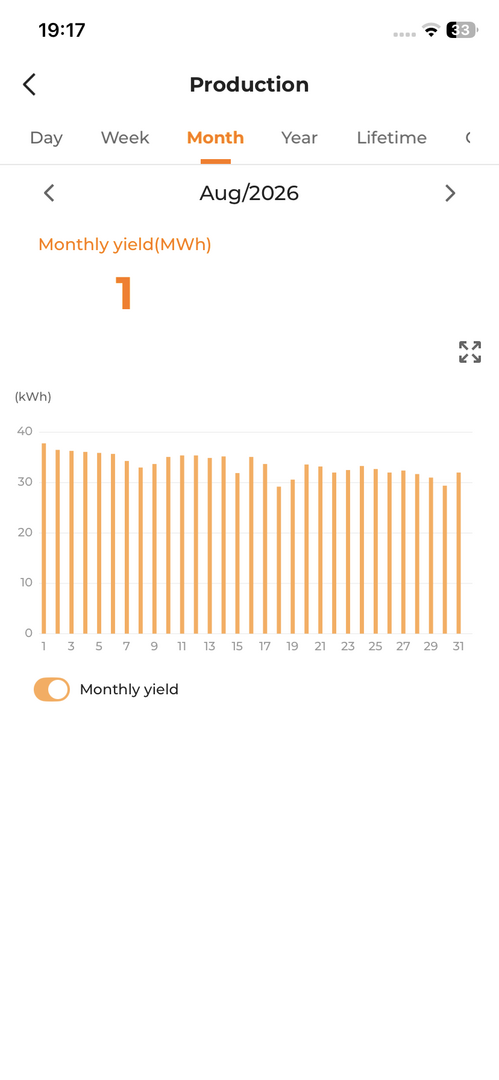

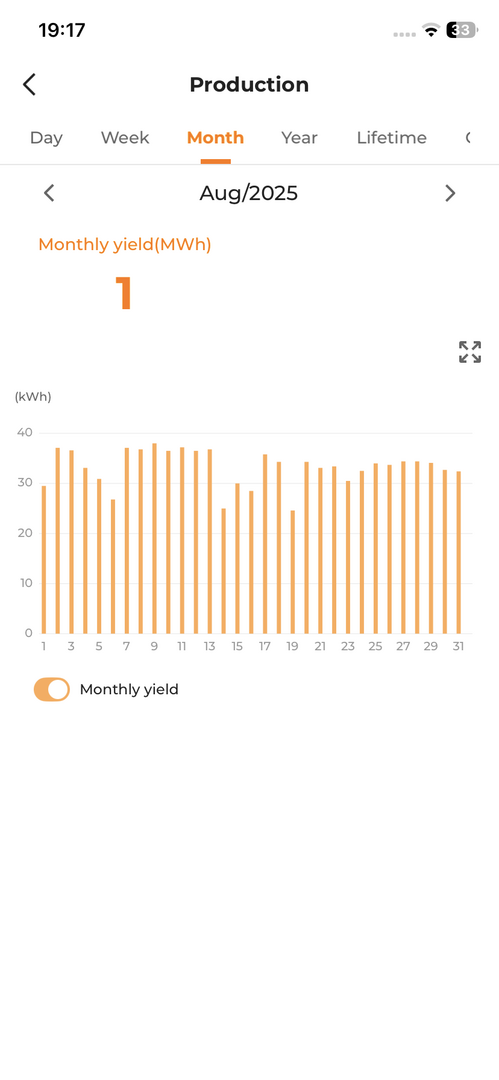

More or less steady at 1Mwh for both 2025 and 2026….

IMG 9451
IMG 9452






ReplyQuote
(@papahuhu)
Reputable Member Member
Joined: 1 year ago
Posts: 396


@tim441

Tim, do you mind if I ask how much power does your heat pump consume in a year please?I have a similarly sized 16kW unit and wonder if my annual consumption is atypical at 7MWh. It’s less than the 10 that was predicted by MCS calcs but it still feels a lot when Im trying torun it on the lean side of comfort.




ReplyQuote
(@tim441)
Honorable Member Contributor
Joined: 4 years ago
Posts: 463


@papahuhu I have pretty good data. Notes:

100sq m is very old listed building

100 sq m is modern extension

First 2 years ran on fixed flows 55deg. After that weather compensation with aggressive low flows but main living areas 21deg. Other areas much cooler. Installed 2020. Exact monthly data from 2023

2021: 8050kWh

2022: 8050

2023: 5782

2024: 5741

2025: 5756

Showing importance of weather compensation. Added to batteries and Intelligent Go the costs are transformed.

Ave import price last year 9.1p






This post was modified 2 weeks ago by Tim441

Listed Grade 2 building with large modern extension.
LG Therma V 16kw ASHP
Underfloor heating + Rads
8.7kw pv solar
3 x 8.2kw GivEnergy batteries
1 x GivEnergy Gen1 hybrid 5.0kw inverter
Manual changeover EPS
MG4 EV



ReplyQuote
