[Sticky] Rate the quality of your heat pump design and installation
Posted by: @razzI've had an emergency engineer come by yesterday and dismiss it all.
🤣 what exactly did he dismiss and why?
Get a copy of The Ultimate Guide to Heat Pumps
Subscribe and follow our YouTube channel!
@radwhispererdwhisperereorourkeditor Well, the guy came out, turned the heat pump to max, we stood outside near it for a bit, and acted shocked that I thought the sound was loud, tbf, it didn't sound so bad (still quite loud).
We went inside and you could hear a low rumble, he was dismissive of it, saying the fridge in the room sounded louder, the fridge is loud, but it's not an annoying deep drone. You definitely can't hear the fridge in other rooms.

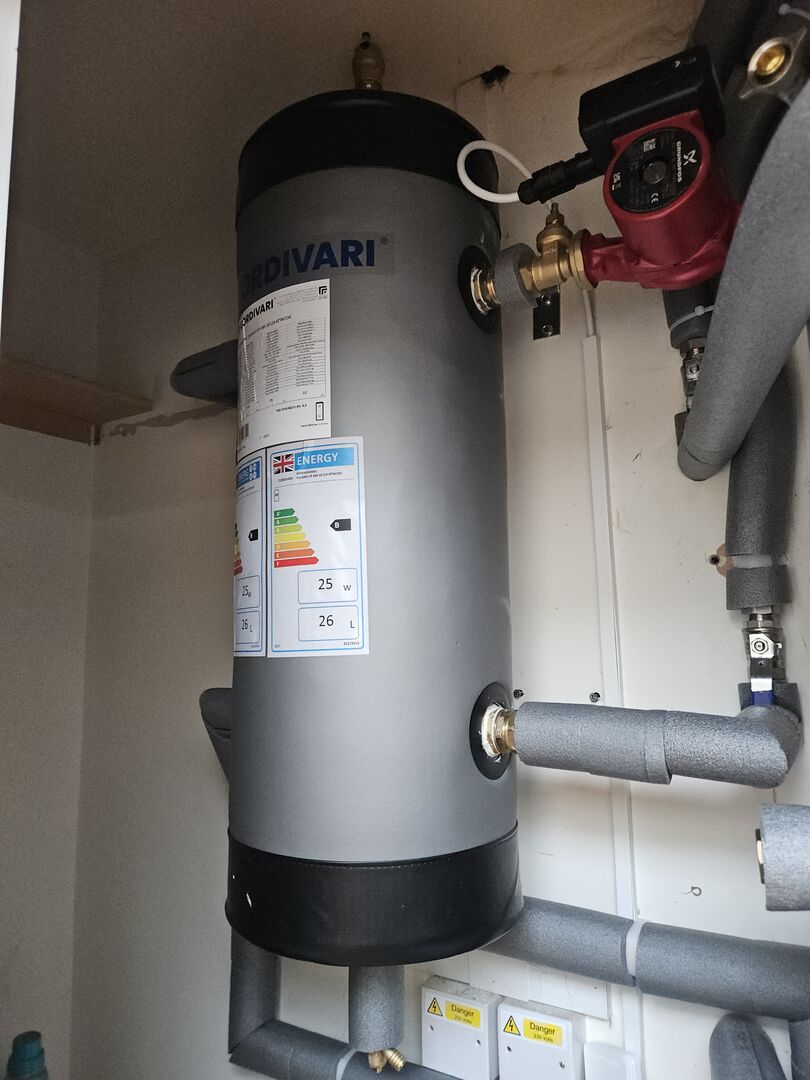

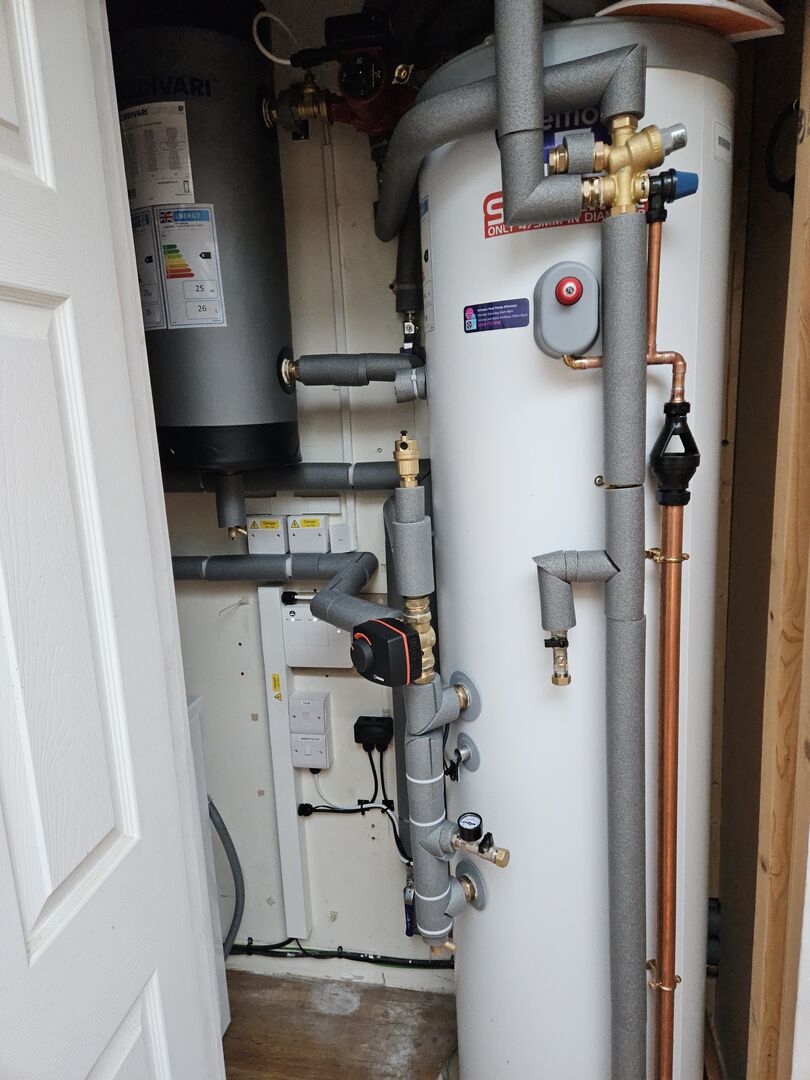

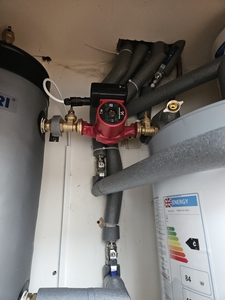

Then we looked in the cabinet with the tank and the (circulation pump?) and volumizer. He guessed that the noise in my room might be from circulation pump, so he turned the speed down on the motor (it hasn't helped).
We went into my room upstairs, and he could hear the low drone, but apparently it wasn't that bad. Then he left.
The sound is even worse in the actual bed, cos the mattress seems to act like a stethoscope for the droning sound of water/circulation pump and the heat pump. You can definitely hear when the heat pump comes on. Last night I had to flee to my front living room to get some sleep.

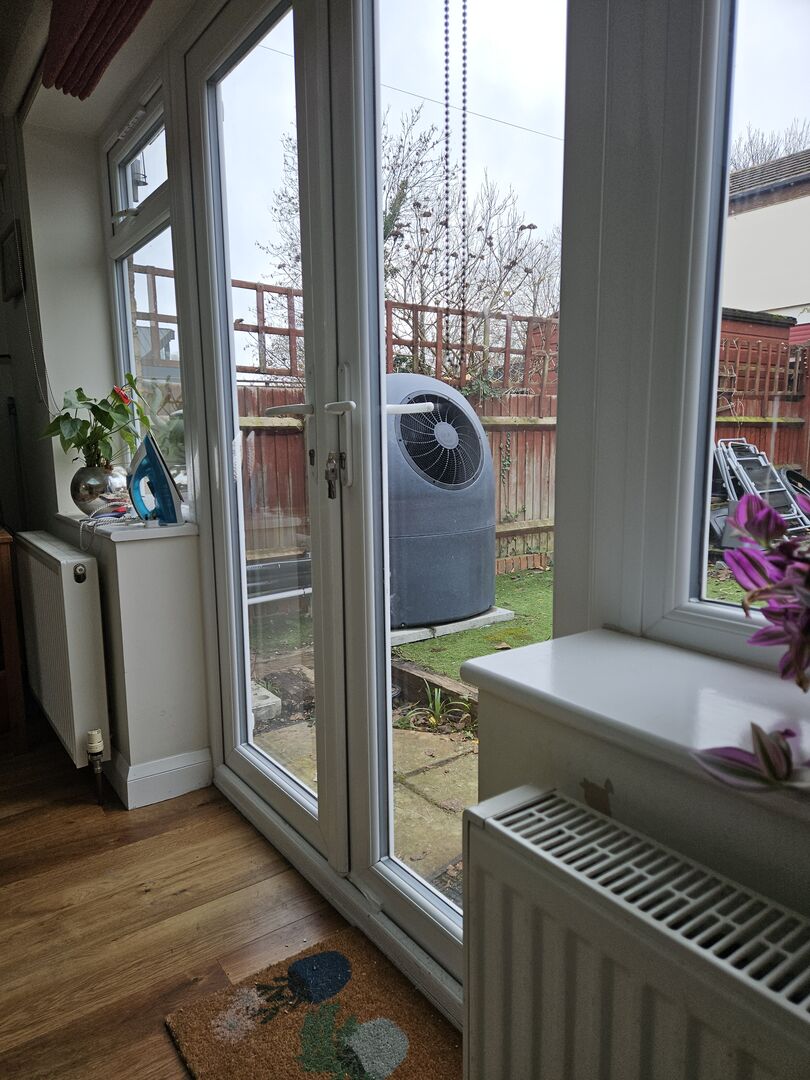

My mum watches TV sitting where the photo was taken from, and she can't any more cos of the rumbling of the HP. It's a low 180Hz (approx) sound, as per octopus recommended app Decibel X.

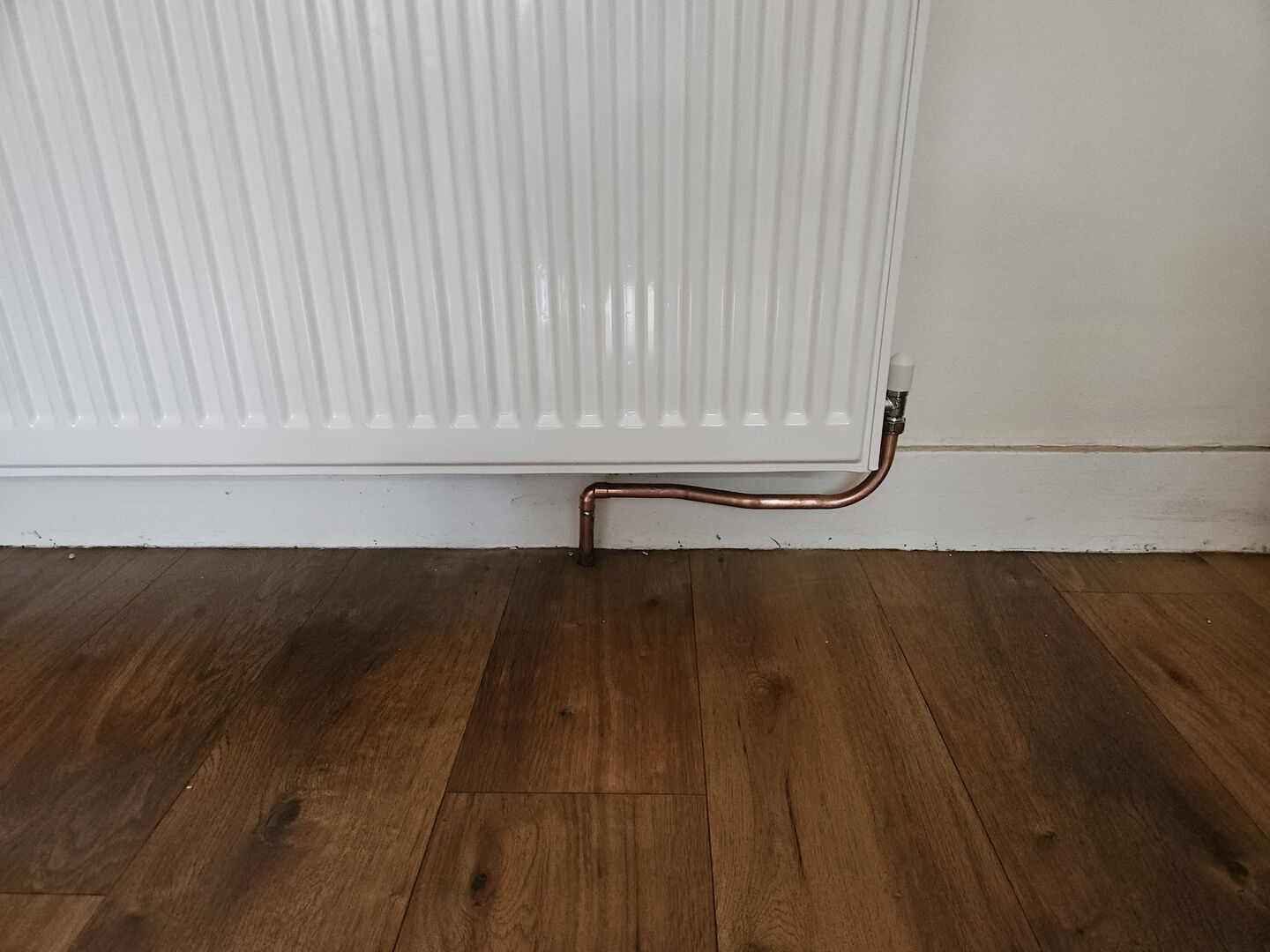

Some more pics, to give a context of what the system is like:
Also, when touching the various tanks and pipes, you can definitely feel the volumizer vibrating.
And a recording of the sound:
https://drive.google.com/file/d/1m7FLOVSMf5Xu0TvZjloNUB5sPl9jxleu/view?usp=drive_link
https://drive.google.com/file/d/16h5TUJBiJOrL_xqSzA1DkMIbequLYRP5/view?usp=drive_link
-
