Lg therma 7kw temp sensor help needed


Air Source Heat Pumps (ASHPs)
Last Post by MMIICCKKOO 2 years ago
5 Posts
2 Users
0 Reactions
952 Views
RSS
 MMIICCKKOO
(@mmiicckkoo)
Active Member Member
Joined: 2 years ago
Posts: 3
Topic starter 31/08/2023 6:14 am

Hey Boys. I AM New here. To start with sorry for the english, i am from denmark. I am about to connect my lg therma V 7kw monobloc. My setup is very simple, pump and a 150l water tank. The entire house have undefloor heating.

We know where to connect the power cable, the 3way vavle, and the controler. The only Thing That we Are missing is the temperature sensor from the water tank. Can anyone tell me where the sensor need to be connected.

We Called lg support to ask Them, but no help. They said they dont sell the pump in denmark and because of That they wont help.



Quote
 Derek M
(@derek-m)
Illustrious Member Member
Joined: 4 years ago
Posts: 4427
31/08/2023 11:40 am

Posted by: @mmiicckkoo
↑

Hey Boys. I AM New here. To start with sorry for the english, i am from denmark. I am about to connect my lg therma V 7kw monobloc. My setup is very simple, pump and a 150l water tank. The entire house have undefloor heating.

We know where to connect the power cable, the 3way vavle, and the controler. The only Thing That we Are missing is the temperature sensor from the water tank. Can anyone tell me where the sensor need to be connected.

We Called lg support to ask Them, but no help. They said they dont sell the pump in denmark and because of That they wont help.

Welcome to the forum.

According to the wiring diagram shown on page 49 of the attached document, it would appear that the temperature sensor should be connected to connector T4.

Hope this helps.

Samsung 9kW rc090mhxea.pdf





ReplyQuote
 MMIICCKKOO
(@mmiicckkoo)
Active Member Member
Joined: 2 years ago
Posts: 3
Topic starter 31/08/2023 3:39 pm

My model is lg HM071MR-U44

It dont Come with the indoor swith box. Everthing has to be connected outside in the pump.



ReplyQuote



 Derek M
(@derek-m)
Illustrious Member Member
Joined: 4 years ago
Posts: 4427
31/08/2023 4:10 pm

Posted by: @mmiicckkoo
↑

My model is lg HM071MR-U44

It dont Come with the indoor swith box. Everthing has to be connected outside in the pump.

If you don't have a copy of the installation manual, I would suggest that you Google the model number and download a copy.





ReplyQuote
 MMIICCKKOO
(@mmiicckkoo)
Active Member Member
Joined: 2 years ago
Posts: 3
Topic starter 31/08/2023 5:33 pm

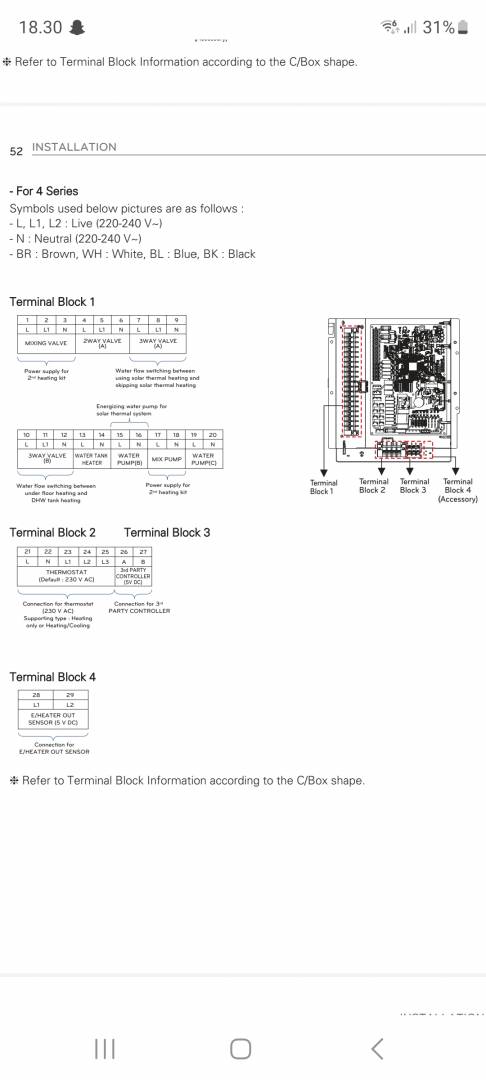

Screenshot 20230831 183051 OneDrive

I am going trough the manuel Again. Terminal 13 and 14 says water tank heater. Is This for the sensor.



ReplyQuote
